Drum Cleaner
Tidecom Group adheres to the business philosophy of "creating value for customers and innovating life with technology", integrates global industry resources, continues technological research and development innovation, and is guided by market customer needs, providing customers with more cost-effective products and services.
Category:
Keyword:
Special equipment | General purpose
Product Description
Application
Widely used in the production of tuber starch to pre remove impurities from raw materials, it can effectively remove impurities such as soil, sand, small stones, weeds, etc.
Features
(1) The drum adopts a composite motion design, which is more effective in removing soil and impurities.
(2) The overall design is reasonable, with large capacity, beautiful appearance, low energy consumption, and convenient installation and maintenance.
(3) The motor configuration is well coordinated and operates smoothly. Ensure a lower proportion of raw material damage to achieve higher starch yield.

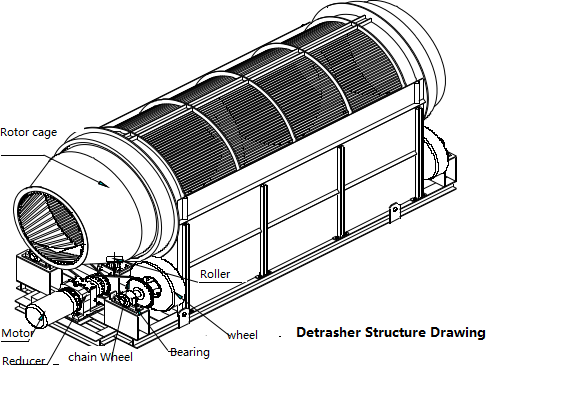

Equipment structure
Working principle
The drum soil remover is composed of components such as motor, reducer, rack, sprocket mechanism, drive wheel assembly, cage assembly, guide wheel assembly, etc. When the machine is in operation, the reducer drives the sprocket to drive the transmission mechanism to rotate, the sprocket drives the transmission mechanism to rotate, and the drive wheel assembly drives the cage assembly to rotate. The raw materials enter the cage assembly, flipping up and down. With the push of the inner spiral forward movement, the potato raw materials enter the next process through the nozzle. The cage component is composed of a circular grid, and impurities such as stones, sand, and dirt are discharged from the bottom of the cage component under the action of gravity.
Technical Parameters
|
Model |
Drum diameter |
Length of trash |
Processing |
Supporting |
Dimensions (mm) |
Weight (kg) |
|
SDC1000 |
1000 |
3000 |
10~20 |
4 |
3400*1440*1800 |
2850 |
|
SDC1200 |
1200 |
4000 |
20~30 |
5.5 |
4420*1640*1980 |
2830 |
|
SDC1500 |
1500 |
5000 |
30~50 |
7.5 |
5180*1940*2200 |
3640 |
